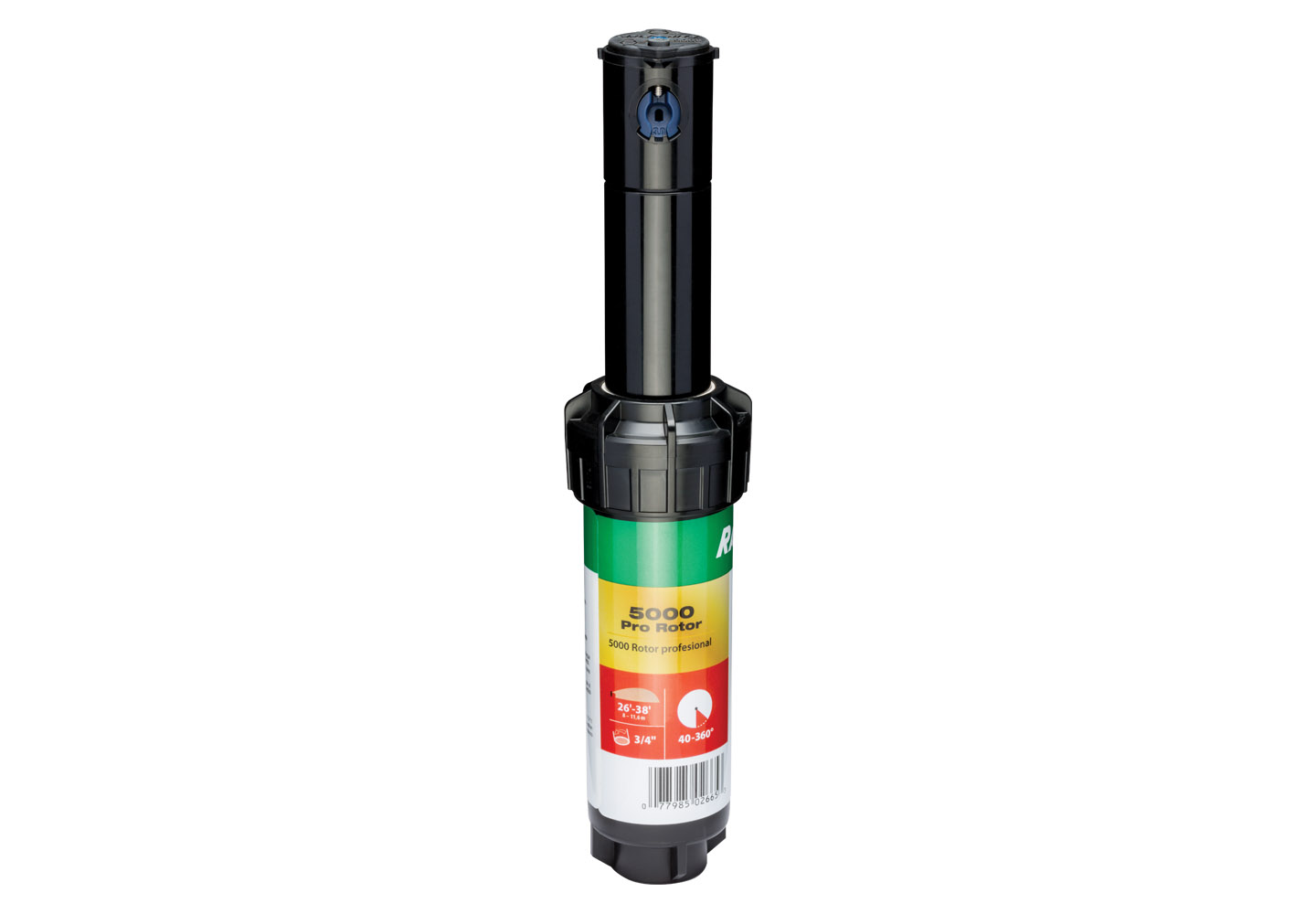

5000 Series Professional Grade Rotor Sprinklers
The Rain Bird 5004 professional grade rotor offers rugged durability and performance along with the added precision of 12 extra nozzles in this Pro Pack to enable balancing precipitation rates with other rotors on the zone or adjusting trajectory to clear low tree branches or to water windy areas. Patented Rain Curtain nozzle technology provides even watering distribution over the entire radius, including close to the head, resulting in a greener lawn with less water.
- Professional grade rotor offers rugged durability & performance
- 26 - 38 ft. watering distance with pre-installed 3.0 gpm nozzle
- Up to 50 ft. watering distance by changing nozzles (supplied)
Videos
Features
- Professional grade rotor offers rugged durability and performance
- 26 - 38 ft. watering distance with pre-installed 3.0 gpm nozzle
- Up to 50 ft. watering distance by changing nozzles (supplied)
- 4 in. pop-up clears taller grass
- 3/4 in. female threaded bottom inlet
- Simple arc and radius adjustment from the top requiring only a flat-bladed screwdriver
- Water-lubricated gear-drive design for durable, reliable operation
- Dual-action, positive stop wiper seal protects internals from debris and, together with a heavy duty stainless steel spring, assures positive pop-up and retraction for water savings
- Gentle close-in watering eliminates dry spots around the rotor, also avoiding seed wash-out
- Includes 12 extra nozzles: (3 low trajectory 1.0 to 3.0 gpm and 8 Rain Curtain nozzles 1.5 to 8.0 gpm)
- Durable rubber cover
Specs
Operating Range
- Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
- Radius: 25 to 50 feet (7,6 to 15,2 m)
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25-65 psi (1,7 to 4,5 bar)
- Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications
- 3/4" (20/27) NPT female bottom threaded inlet
- Reversing full and part circle adjustment 40° – 360°
Dimensions
- Pop-up height: 4" (10,2 cm)
- Overall body height: 7 3/8" (18, 5 cm)
- Exposed surface diameter: 1 5/8" (4,1 cm)
Note: Pop-up height measured from the cover to the nozzle. Overall body height is measured popped down
