Tubería de Polietileno PE
To ensure years of worry-free performance, Rain Bird PE Polyethylene Tubing has been engineered to stand up to harsh chemicals, UV radiation and damage that can be caused by farm equipment.
- Extruded from high quality, low density polyethylene blend resin
- Resistant to Ultra-Violet (UV) radiation, cracking, and splitting for reliable operation
- Available in standard coil lengths or large diameter reels
- Backed by Rain Bird Customer Satisfaction Policy which provides protection up to 7-years on product workmanship and 7-years on environmental stress cracking
Características
Maximum Durability
Rain Bird PE Polyethylene Tubing is engineered and tested to stand up to harsh chemicals, UV radiation and damage that can be caused by farm equipment, resulting in years of worry-free performance.
Application Versatility
Rain Bird PE Polyethylene Tubing is ideally suited for all vineyard, orchard, greenhouse and nursery applications, including grapes, hops, stone fruits, almonds, walnuts, pecans and more. It can be placed on surface, subsurface or suspended and used with both online drippers and micro-sprays.
Unmatched UV
Protection Manufactured from a unique, field-proven resin blend that holds up against destructive UV radiation. Resists cracking and splitting to deliver years of reliable operation.
Customer Satisfaction
Policy Rain Bird’s best-in-industry Customer Satisfaction Policy provides 7 years of protection on product workmanship and 7 years on environmental stress cracking. This policy applies only to tubing with a wall thickness of 35 mil or greater.
Ideal for Use With

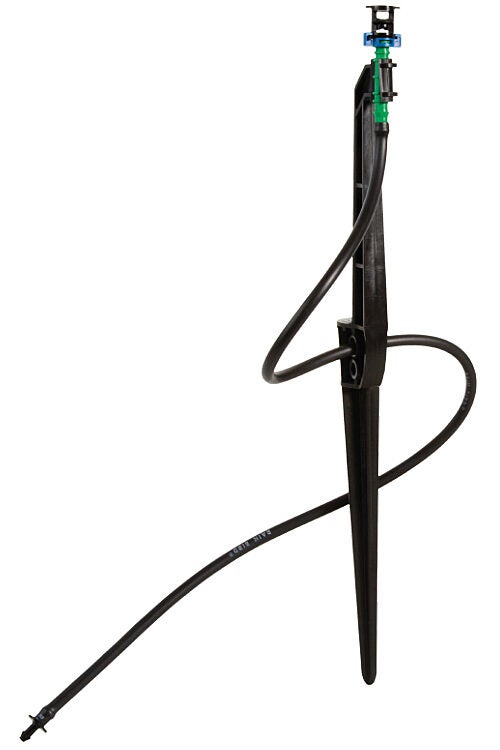

Micro-Quick™ Sprays and Micro Bird® Spinners
- Micro-Quick Sprays have a unique snap-fit assembly for easy maintenance and deflectors feature dual pattern design to allow system to grow along with trees
- Micro Bird Spinners are ideal for more mature trees and provide a 340-degree pattern design for uniform coverage without wetting tree trunks
Pressure Compensating On-Line Emitters
- Ideal for low volume precision water applications with a self-piercing inlet with barbed outlet for easy installation
- Regulating pressure ranges from 15 to 50 psi (1.0 to 3.5 bar) and flow rates include 0.5 gph, 1.0 gph, and 2.0 gph (1.89 l/h, 3.79 l/h, and 7.57 l/h)
Especificaciones
| Inside Diameter | Outside Diameter | Wall Thickness | Pressure Rating |
Model Number 500' Coil |
Model Number 660' Coil |
Model Number 1000' Coil |
|---|---|---|---|---|---|---|
| 0.520" (13.2 mm) | 0.620" (15.7 mm) | 0.050" (1.27 mm) | 66 psi (4.6 bar) | PE52062050 | PE52062010 | |
| 0.540" (13.7 mm) | 0.610" (15.5 mm) | 0.035" (0.89 mm) | 47 psi (3.2 bar) | A51635BLANK | ||
| 0.540" (13.7 mm) | 0.630" (15.7 mm) | 0.045" (1.14 mm) | 58 psi (4.0 bar) | A51645BLANK | ||
| 0.570" (14.5 mm) | 0.660" (16.7 mm) | 0.045" (1.14 mm) | 55 psi (3.8 bar) | PE57066050 | PE57066010 | |
| 0.600" (15.2 mm) | 0.700" (17.8 mm) | 0.050" (1.27 mm) | 58 psi (4.0 bar) | PE60070050 | PE60070010 | |
| 0.619" (15.7 mm) | 0.709" (18.0 mm) | 0.045" (1.14 mm) | 51 psi (3.5 bar) | A518BLANK | ||
| 0.620" (15.7 mm) | 0.710" (18.0 mm) | 0.045" (1.14 mm) | 51 psi (3.5 bar) | PE62071050 | PE62071010 | |
| 0.690" (17.5 mm) | 0.786" (20.0 mm) | 0.048" (1.22 mm) | 50 psi (3.4 bar) | A520BLANK | ||
| 0.690" (17.5 mm) | 0.790" (20.1 mm) | 0.050" (1.27 mm) | 51 psi (3.5 bar) | PE69079050 | PE69079010 | |
| 0.720" (18.3 mm) | 0.820" (20.8 mm) | 0.050" (1.27 mm) | 49 psi (3.4 bar) | PE72082050 | PE72082010 | |
| 0.820" (20.8 mm) | 0.930" (23.6 mm) | 0.055" (1.40 mm) | 47 psi (3.2 bar) | PE82093050 | PE82093010 | |
| 0.820" (20.8 mm) | 0.940" (23.9 mm) | 0.060" (1.52 mm) | 51 psi (3.5 bar) | PE82094050 | PE82094010 | |
| 0.830" (21.1 mm) | 0.940" (23.9 mm) | 0.055" (1.40 mm) | 46 psi (3.2 bar) | PE83094050 | PE83094010 | |
| 1.060" (26.9 mm) | 1.184" (30.1 mm) | 0.062" (1.57 mm) | 49 psi (3.4 bar) | PE10611850 | PE10611866 |
