ISM Series Sand Media Filters

Removal of Solids Down to 20 Microns

Rain Bird ISM Series Sand Media filters are designed for the most challenging dirty water conditions, and are a high-performance solution for water filtration down to 20 microns. These durable carbon steel filters utilize a 24” vertical side shell depth for removal of organic and inorganic suspended solids for filtering large volumes of water with very little pressure drop and are a long-term value. All Rain Bird industrial media filters utilize our simple backwash system for ease of operation and consistent water quality. The automatically controlled filter system operates for an extended period of time prior to a short backwash cycle.

Applications

  • Removal of organic and/or inorganic suspended solids down to 20 microns
  • Storm water runoff, industrial process water, incoming plant water, waste water clean-up, industrial water for plant reuse
  • Pre-filtration in applications such as granular activated carbon, reverse osmosis, cartridge or bag filtration and deionized water
  • 80 psi standard operating pressure (high pressure systems available)
  • Flow ranges from 10 gpm and up

Features

Advantages

  • State-of-the-art fabrication provides added strength under pressure and long system life
  • ASME code shaped head construction for durability and safety
  • Stainless steel wedgewire underdrain:
    • Ensures structural integrity in the harshest conditions
    • Hydraulically balanced to increase effectiveness of backwash while reducing flush frequency and waste of water
    • High strength stainless steel wedgewire will withstand a collapse pressure in excess of 600 psi
  • Standard carbon steel products - 3/16” thick material
  • Backwash automatically initiated by elapsed time or pressure differential
  • Easy-entry lid closure with weld tabs for operator safety
  • Available in welded carbon steel
  • 3M Scotchkote® 134 fusion bonded epoxy coating on interior surfaces

Standard product includes:

  • Completely assembled for easy installation
  • Skid mounted tanks
  • Easy-entry lid closure with side manway
  • Valves
  • Inlet/outlet and backwash manifolds
  • Controller, solenoids, electrical wire, tubing
  • Removable underdrain
  • 3M Scotchkote® 134 fusion bonded epoxy coating on interior surfaces

Available options:

  • ASME code
  • High pressure
  • Solar package
  • PLC controller
  • Custom filter station layout piping
  • Air scour

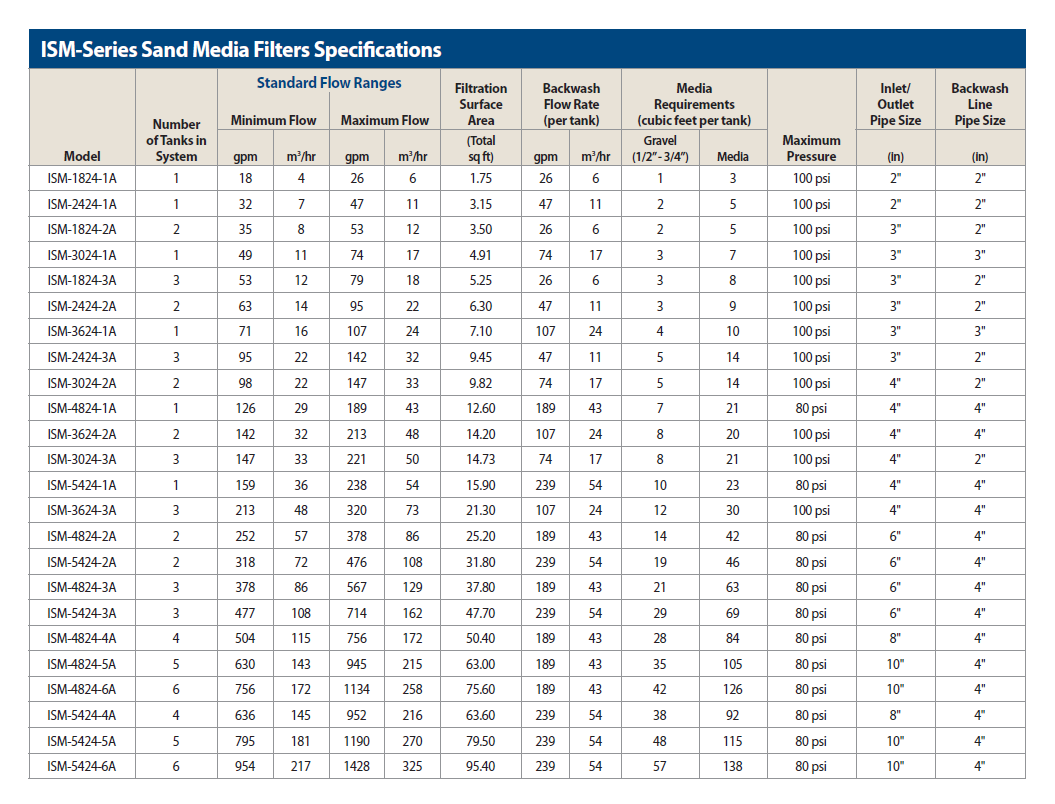

Specs
