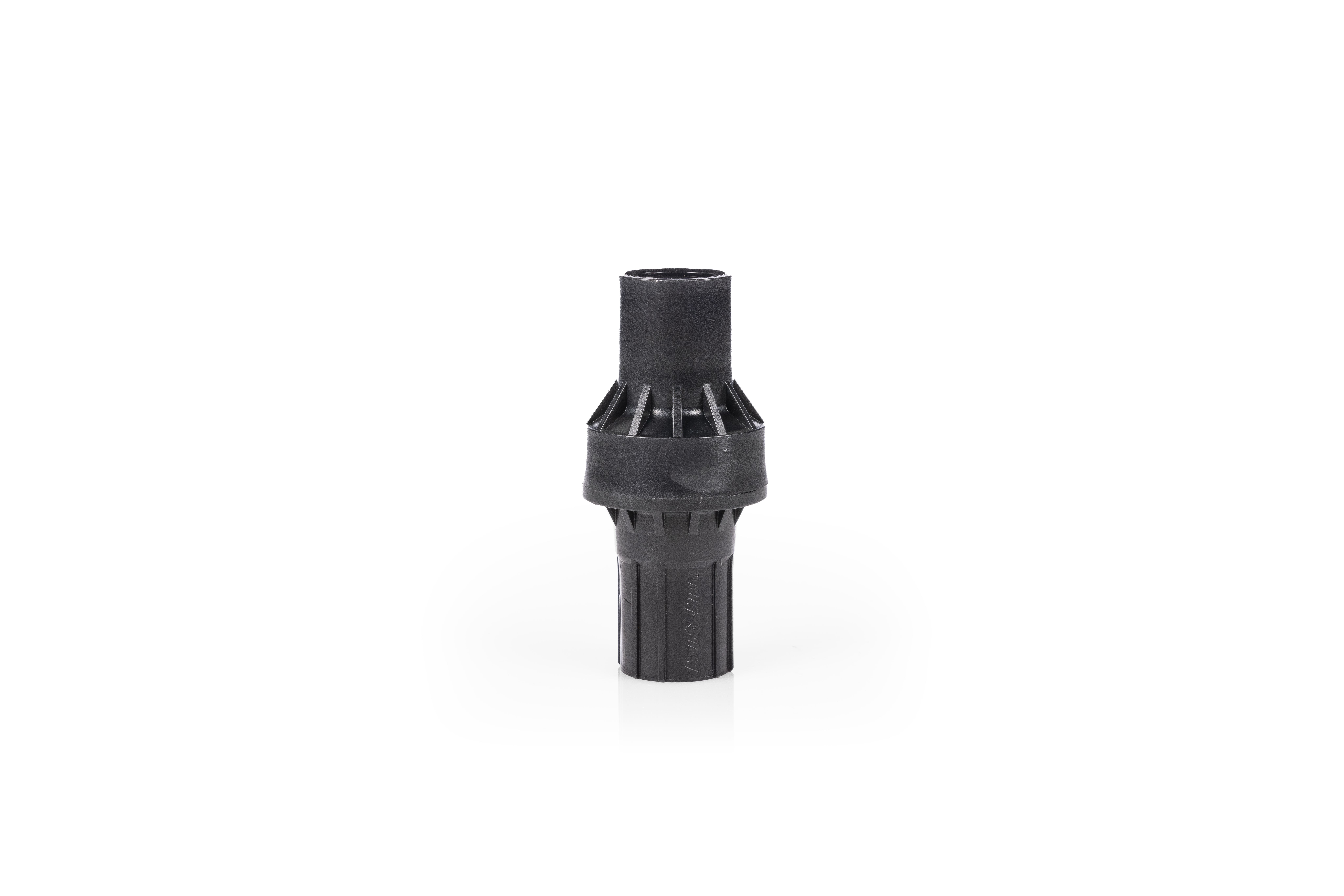

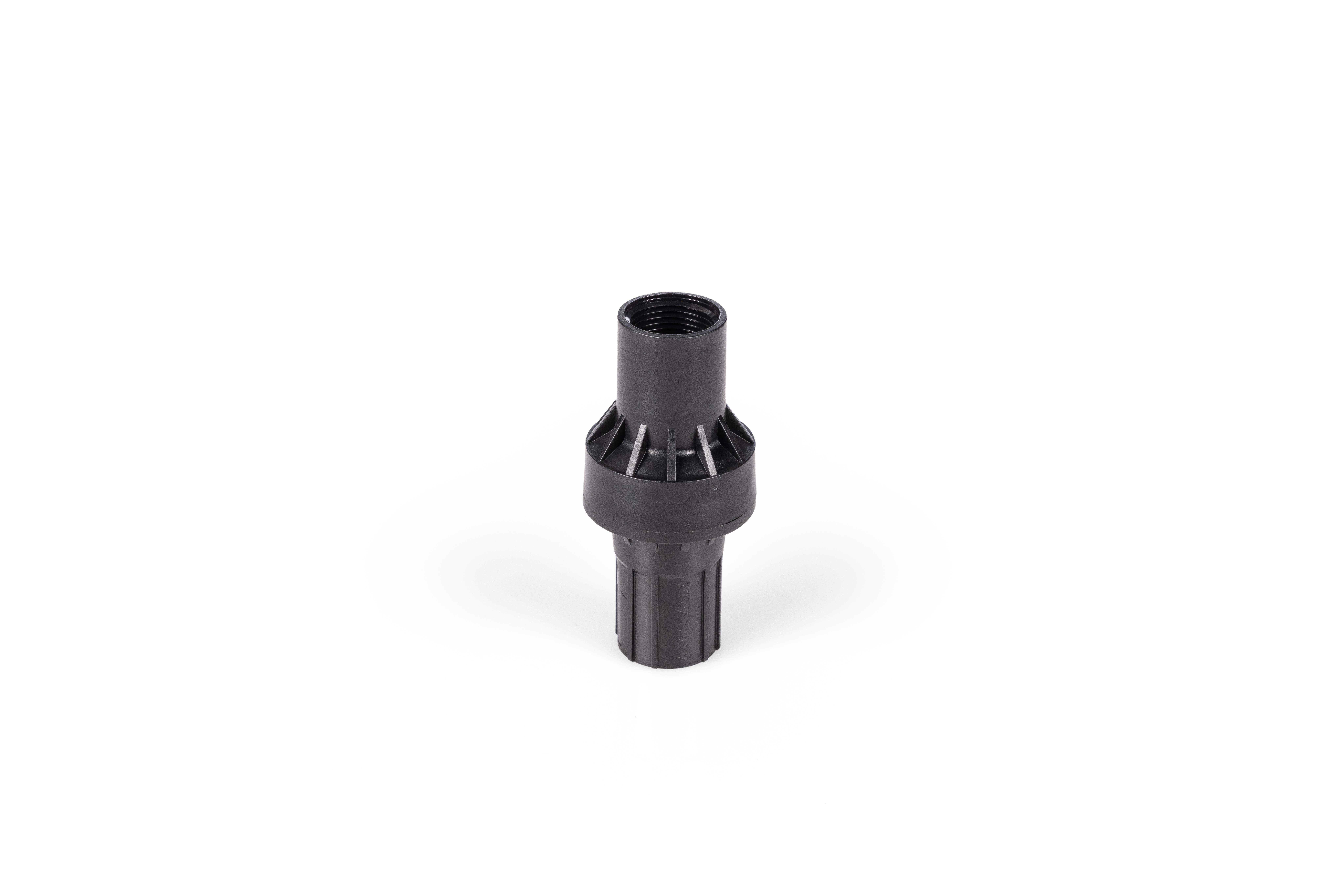

Inline Pressure Regulators

Regulates outlet pressure to 30 psi or 40 psi, can be installed above or below ground.

Features

  • Can be installed above or below grade
  • Preset outlet pressure: 30 psi (2.0 bar) and 40 psi (2.8 bar)
  • ¾" or 1" NPT female-threaded inlet and outlet



Specs

Operating Range

  • Flow
    • PSI-L30X-075: 0.20 to 5.0 gpm; 12 to 300 gph (0.8 to 18.9 l/m)
    • PSI-M30X-075, psi-M40X-075: 2.0 to 10.0 gpm; 120 to 600 gph (7.8 to 37.9 l/m)
    • PSI-M40X-100: 2.0 to 20 gpm; 120 to 900 gph (7.8 to 56.8 l/m)
  • Inlet Pressure: 10-150 psi (0.7 to 10.3 bar)

Models

  • PSI-L30X-075: ¾" 30 psi (2.1 bar) regulator for low flow (red label)
  • PSI-M30X-075: ¾" 30 psi (2.1 bar) regulator for medium flow (yellow label)
  • PSI-M40X-075: ¾" 40 psi (2.8 bar) regulator for medium flow (yellow label)
  • PSI-M40X-100: Regulator for medium flow
